Details

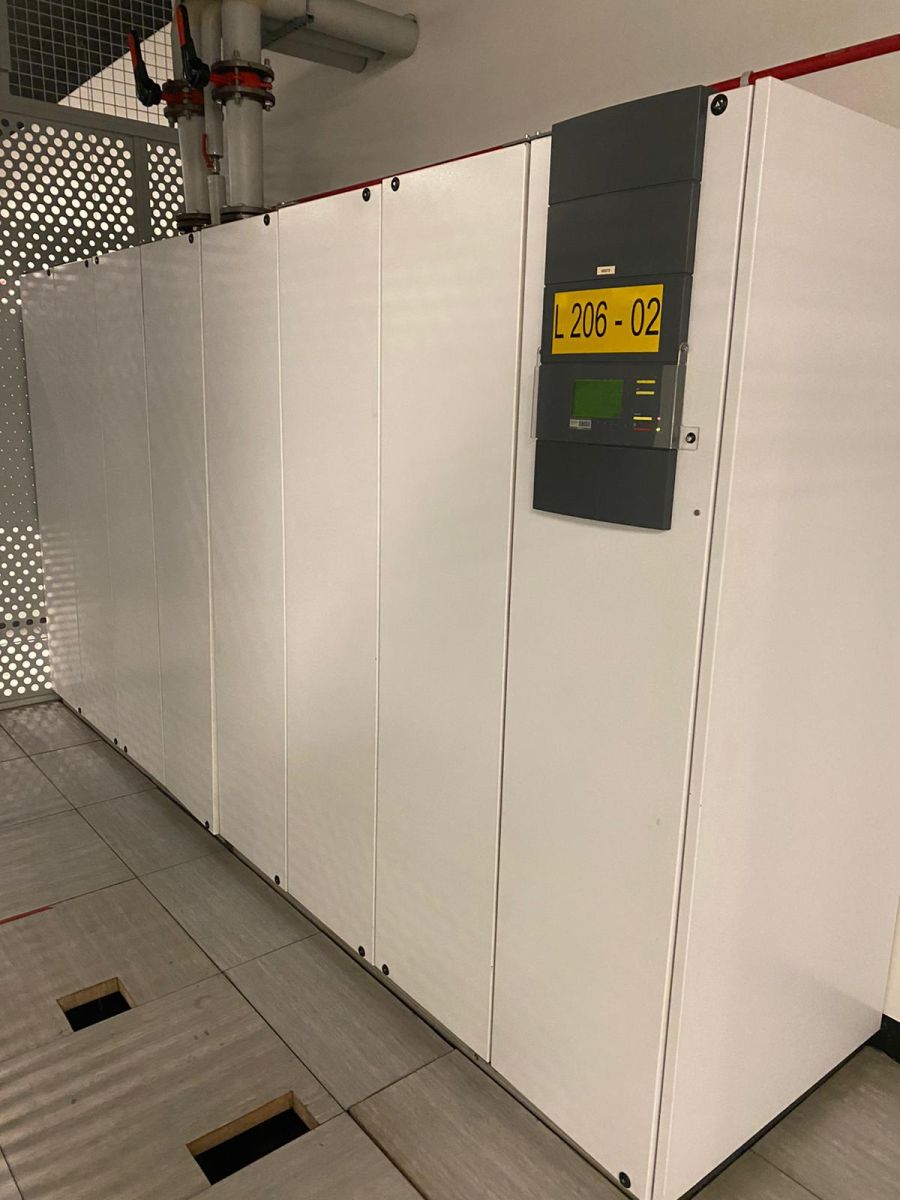

We have 20 units available. Precision air conditioning unit in extendable modular type, suitable for separate installation, for conditioning, consisting of 2 module(s). Each module is provided with its own air, electrical and cooling circuit per module. Due to the modularity the air conditioning unit provides for a stand-by function. Product Range: M (Modular-Line) Types series: R (Standard) Air discharge direction: D (Downflow) Refrigerating capacity/ Cooling capacity per module: 76 kW Number of modules: 2 Type of design: G Evaporator: Velocity of airflow (m/s): 2.54 Length: 3700mm Depth: 810mm Height: 2000mm Number of fans: 1 Refrigerant quantity R407c (G and GE only): 2.4 Type of compressor: scroll Cooling water lines exist in G-units only, the connection has to be made in the first module. Unit type: G: Water/glycol cooled unit Air direction: Downflow Air intake: top, Discharge: bottom In the housing located on the suction side of the coil, with large zig-zag filter surface, in a cardboard frame completely combustible, filter quality EU4.
